Vex LED Tape & Channel

A range of high-quality LED tapes in a wide range of CCT, Colour and Power options. Suitable for indoor use, outdoor possible with a suitable enclosure.

Categories: Flexible, Perimeter, Recessed, Surface, VEX-LED TAPE, Wall Code: VEX-LED-TAPE Tags: Flexible Indoor Only

Description

The Vex LED Tape range represents a high-quality selection of bare LED tapes available in Static White CCT (1600K to 6500K), RGBW and RGB Dynamic Pixel options at 8mm (Static White) & 10mm (RGBW & RGB Dynamic) wide.

Boasting superior voltage regulation and 4oz copper PCBs Vex LED Tape is suitable for many indoor applications either alone or paired with one of our aluminium extrusions, with integrated diffuse lens, for added environmental protection.

Supplied in a standard 5m reel length, Vex LED tape can be cut on-site at 50mm or 100mm intervals depending on the specification selected.

Static White (160 LEDs/m)

CCT/Colour Options	1600K, 1800K, 2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
Power Options	6 W/m, 10 W/m, 15 W/m
CRI	90
LED Count	160/m (SMD2835)
Tape Width	8mm
Cutting Interval	50mm
Max Chain Length	15.0m (6 W/m), 9.0m (10 W/m), 6.0m (15 W/m)

RGBW (240 LEDs/m)

CCT/Colour Options	RGBW (2700K)
Power Options	15 W/m
CRI	90 (White Only)
LED Count	240/m (SMD2835 + SMD2216)
Tape Width	10mm
Cutting Interval	50mm
Max Chain Length	6.0m (15 W/m)

RGB Dynamic Pixel (120 LEDs/m)

CCT/Colour Options	RGB Dynamic (10 pixels per Meter)
Power Options	15 W/m
CRI	N/A
LED Count	120/m (SMD5050)
Tape Width	10mm
Cutting Interval	100mm
Max Chain Length	6.0m (15 W/m)

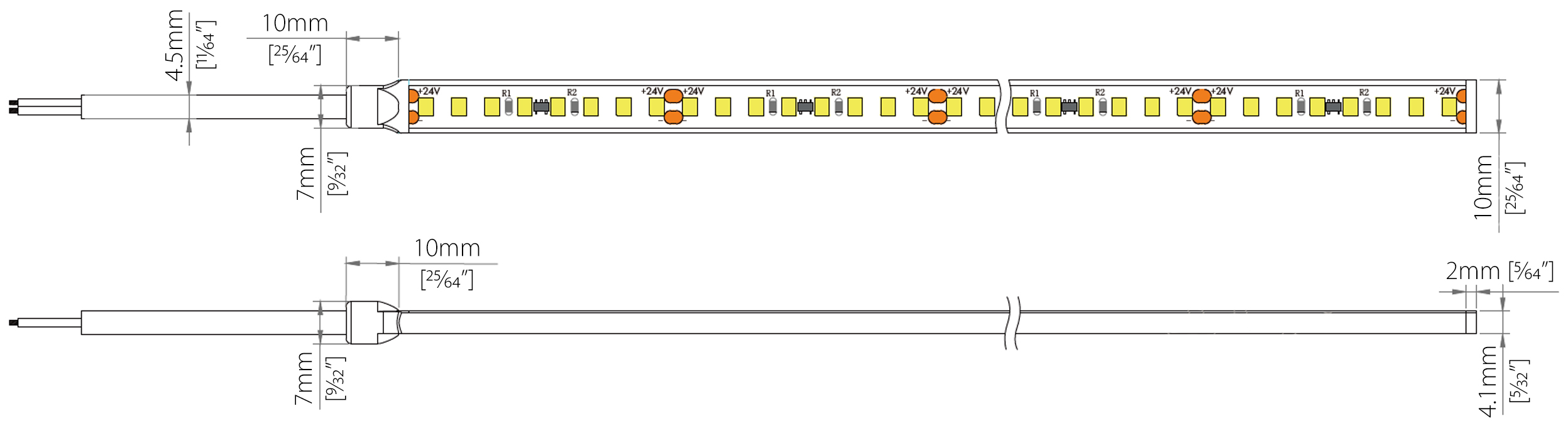

VEX-LED-TAPE-RGB-DYN - Dimensions Diagram

LED Tape Mounting Channels

Profiles are silver anodised aluminium with a milky, dot-free PC cover (standard). Other colours and covers are available on request.
Each 1m length comes as a kit, including two attachment clips and two end caps (one with cable entry, one blank).
Lengths up to 3m may be available depending on order volume. Additional clips or end caps can be supplied separately on request.

Surface Mount Profiles

Product Code	023501
Maximum Tape Width (mm)	5
Outer Dimensions (mm)	8.0 x 7.4
Maximum Transmittance (%)	40

Product Code	023222
Maximum Tape Width (mm)	5
Outer Dimensions (mm)	7.8 x 9.0
Maximum Transmittance (%)	60

Product Code	023239
Maximum Tape Width (mm)	5
Outer Dimensions (mm)	10.0 x 10.0
Maximum Transmittance (%)	50

Product Code	023504
Maximum Tape Width (mm)	5
Outer Dimensions (mm)	10.0 x 13.0
Maximum Transmittance (%)	50

Product Code	023505
Maximum Tape Width (mm)	8
Outer Dimensions (mm)	12.0 x 8.4
Maximum Transmittance (%)	40

Product Code	023506
Maximum Tape Width (mm)	8
Outer Dimensions (mm)	12.0 x 14.9
Maximum Transmittance (%)	50

Product Code	021949
Maximum Tape Width (mm)	10
Outer Dimensions (mm)	15.9 x 7.0
Maximum Transmittance (%)	60

Product Code	023507
Maximum Tape Width (mm)	15
Outer Dimensions (mm)	19.5 x 19.7
Maximum Transmittance (%)	60

Product Code	023508
Maximum Tape Width (mm)	15
Outer Dimensions (mm)	19.5 x 19.7
Maximum Transmittance (%)	60

Product Code	021950
Maximum Tape Width (mm)	10
Outer Dimensions (mm)	15.9 x 13.0
Maximum Transmittance (%)	40

Product Code	021951
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	17.1 x 8.0
Maximum Transmittance (%)	70

Product Code	023405
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	17.1 x 15.2
Maximum Transmittance (%)	50

Product Code	023510
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	17.1 x 15.0
Maximum Transmittance (%)	60

Product Code	023511
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	17.0 x 15.4
Maximum Transmittance (%)	60

Product Code	023512
Maximum Tape Width (mm)	18
Outer Dimensions (mm)	23.5 x 13.6
Maximum Transmittance (%)	70

Recessed Profiles

Product Code	023513
Maximum Tape Width (mm)	5
Outer Dimensions (mm)	12.8 x 12.0
Maximum Transmittance (%)	50

Product Code	023514
Maximum Tape Width (mm)	6
Outer Dimensions (mm)	15.8 x 14.9
Maximum Transmittance (%)	30

Product Code	022468
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	21.7 x 15.0
Maximum Transmittance (%)	60

Product Code	023515
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	23.0 x 15.2
Maximum Transmittance (%)	50

Product Code	023516
Maximum Tape Width (mm)	10
Outer Dimensions (mm)	24.0 x 12.0
Maximum Transmittance (%)	60

Product Code	023517
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	25.0 x 15.0
Maximum Transmittance (%)	70

Product Code	023518
Maximum Tape Width (mm)	25
Outer Dimensions (mm)	50.0 x 35.0
Maximum Transmittance (%)	50

Product Code	023519
Maximum Tape Width (mm)	40
Outer Dimensions (mm)	65.0 x 35.0
Maximum Transmittance (%)	50

Product Code	023520
Maximum Tape Width (mm)	65
Outer Dimensions (mm)	90.0 x 35.0
Maximum Transmittance (%)	60

Suspended Profiles

Product Code	023521
Maximum Tape Width (mm)	16
Outer Dimensions (mm)	20.0 x 23.9
Maximum Transmittance (%)	80

Product Code	023522
Maximum Tape Width (mm)	16
Outer Dimensions (mm)	20.0 x 27.0
Maximum Transmittance (%)	80

Product Code	023523
Maximum Tape Width (mm)	17
Outer Dimensions (mm)	ø30.0
Maximum Transmittance (%)	40

Product Code	023524
Maximum Tape Width (mm)	25
Outer Dimensions (mm)	35.0 x 35.0
Maximum Transmittance (%)	50

Product Code	023525
Maximum Tape Width (mm)	40
Outer Dimensions (mm)	50.0 x 35.0
Maximum Transmittance (%)	50

Product Code	023526
Maximum Tape Width (mm)	65
Outer Dimensions (mm)	75.0 x 35.0
Maximum Transmittance (%)	60

Corner Profiles

Product Code	023305
Maximum Tape Width (mm)	10
Outer Dimensions (mm)	15.8 x 15.8
Maximum Transmittance (%)	70

Product Code	023528
Maximum Tape Width (mm)	10
Outer Dimensions (mm)	15.8 x 15.8
Maximum Transmittance (%)	60

Product Code	023529
Maximum Tape Width (mm)	14
Outer Dimensions (mm)	18.1 x 18.1
Maximum Transmittance (%)	60

Wall-Washer Profiles

Product Code	023530
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	17.7 x 48.5
Maximum Transmittance (%)	60

Decorative Profiles

Product Code	023531
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	36.0 x 17.6
Maximum Transmittance (%)	60

Product Code	023532
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	36.7 x 49.5
Maximum Transmittance (%)	60

Product Code	023533
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	89.0 x 58.0
Maximum Transmittance (%)	60

Product Code	023534
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	101.0 x 68.6
Maximum Transmittance (%)	60

Product Code	023535
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	35.5 x 11.3
Maximum Transmittance (%)	50

Product Code	023536
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	35.5 x 11.3
Maximum Transmittance (%)	40

Product Code	023537
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	46.0 x 26.5
Maximum Transmittance (%)	40

Product Code	023538
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	53.0 x 23.0
Maximum Transmittance (%)	40

Product Code	023539
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	56.0 x 15.0
Maximum Transmittance (%)	50

Product Code	023540
Maximum Tape Width (mm)	20
Outer Dimensions (mm)	62.0 x 14.0
Maximum Transmittance (%)	70

Product Code	023541
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	98.0 x 35.0
Maximum Transmittance (%)	60

Product Code	023542
Maximum Tape Width (mm)	12
Outer Dimensions (mm)	106.0 x 45.0
Maximum Transmittance (%)	60
