Power-Graze 200

Introducing Power-Graze 200, a Contemporary 80mm wide LED Grazing Light with a Choice of Colour Options & Multiple Beam Angles.



Category: Code: POWER-GRAZE-200 Tags:

Description

Power-Graze 200 is a contemporary LED grazing light with a selection of output types and beam angles to choose from.

Manufactured from high-grade, powder-coated, die-cast aluminium and resilient tempered glass, these luminaires are built to last and are suitable for both indoor and outdoor uses.

The 80mm wide body houses 24 powerful LEDs per meter, with static white, RGBW and RGBWCLA options available; all with a 200W/m maximum output.

The 7 in 1 option (RGBWCLA) comes complete with intelligent output balancing technology, allowing for superior colour reproduction at any level of dimming.

This also ensures the maximum output of the luminaire is available independent of the hue selected.

Choose from multiple beam angles from an ultra-narrow 2.5°, to a wide 60°.

Options

Model OptionsPower-Graze 200

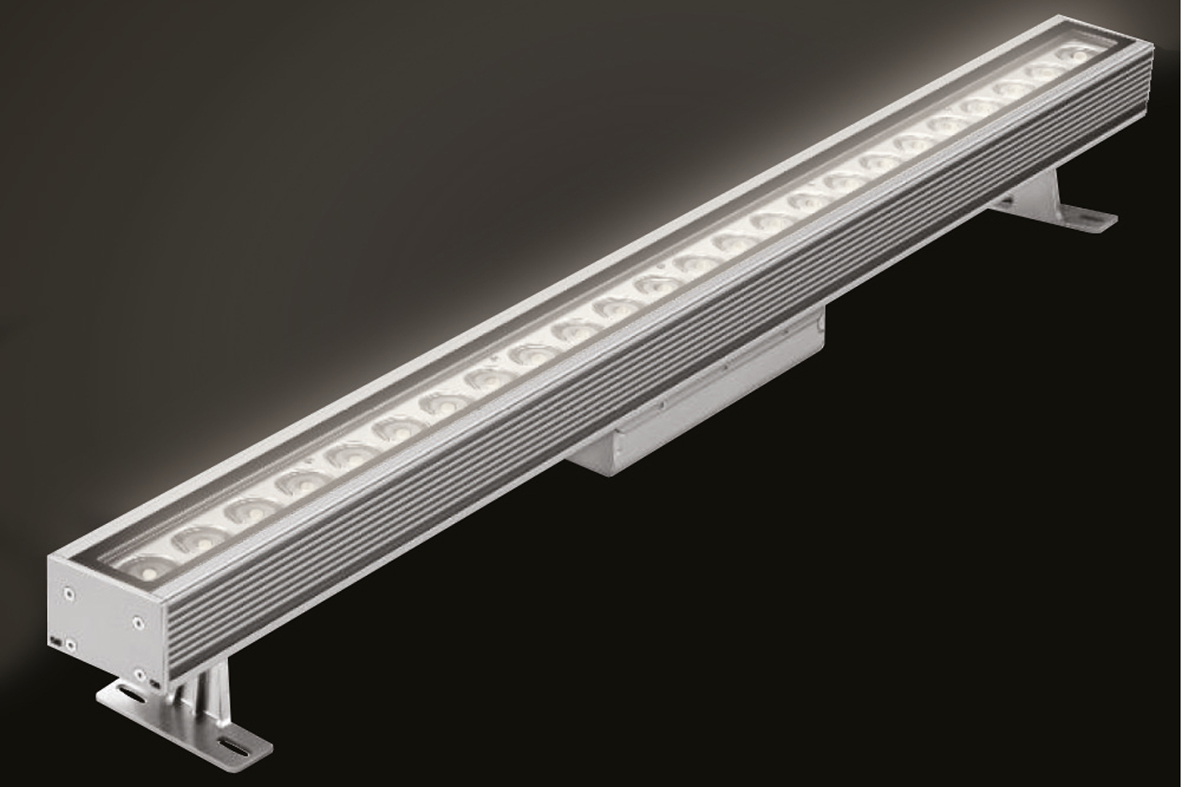

CCT/LED OptionsStatic White (2700K, 3000K, 4000K)

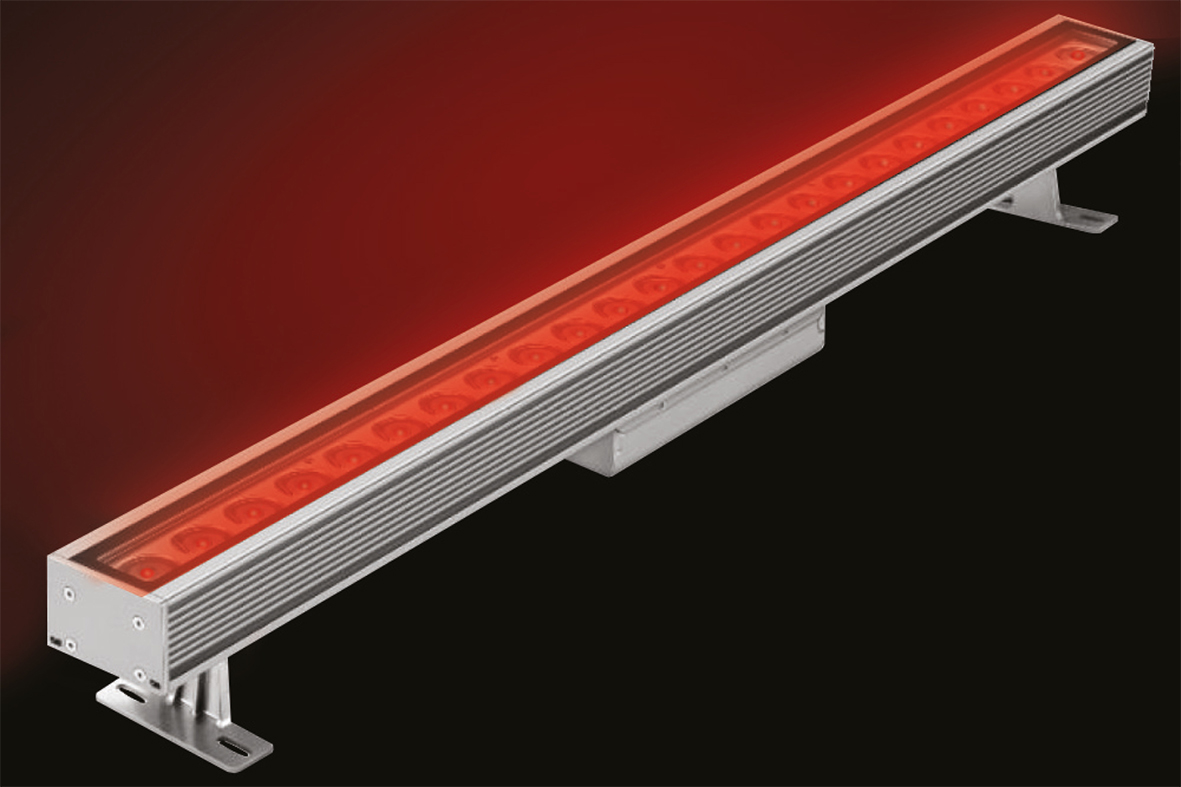

RGBW
RGBWCLA (Output Balancing)
Optic OptionsStatic White - 2.5°, 8°, 12°, 20°, 30°, 45°, 60°, 10°x60°
RGBW - 9°, 15°, 20°, 30°, 45°, 15°x60°
RGBWCLA - 10°, 15°, 20°, 30°, 15°x60°
CRI Options80 (White Only)
Power Options200W/m (All Options)

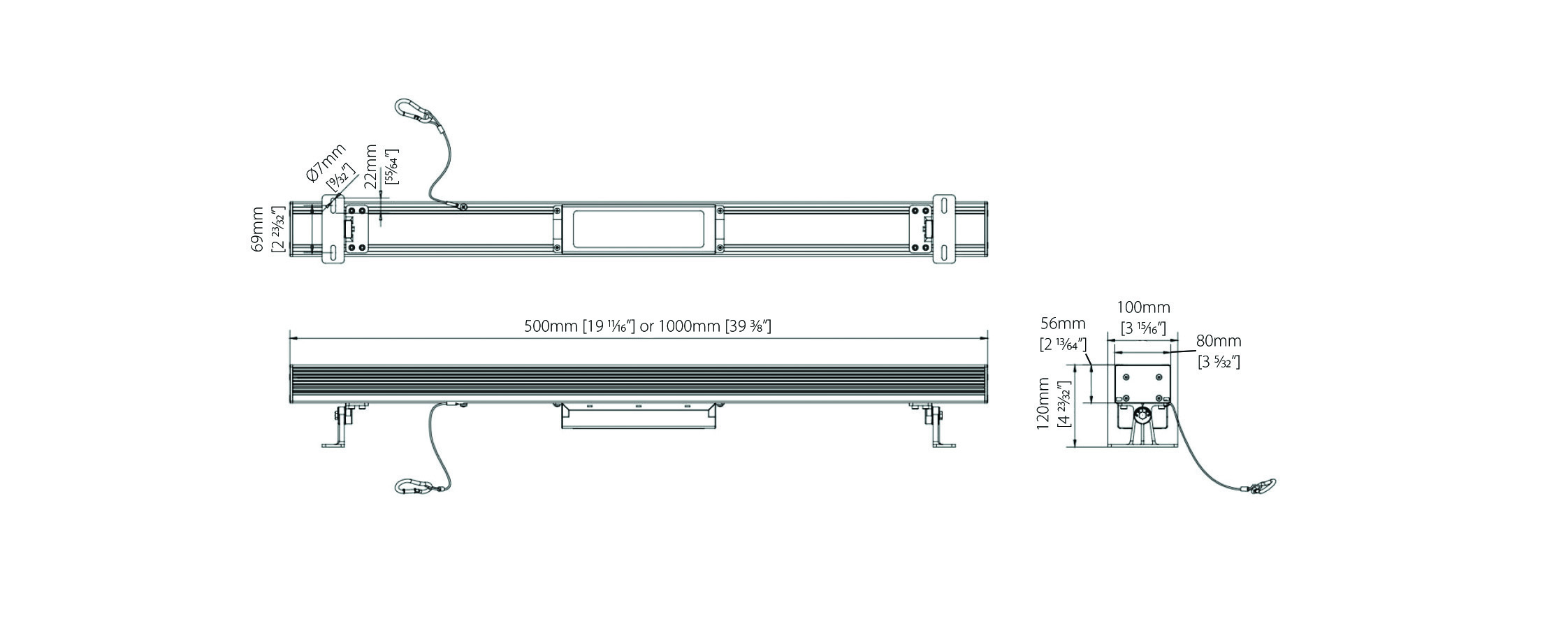

Luminaire Width80mm
Luminaire Length Options500mm, 1000mm
Control MethodOn/Off (Standard for Static White)
0 - 10V
DMX (Standard for RGBW & exclusive for RGBWCLA)
DALI

Accessories

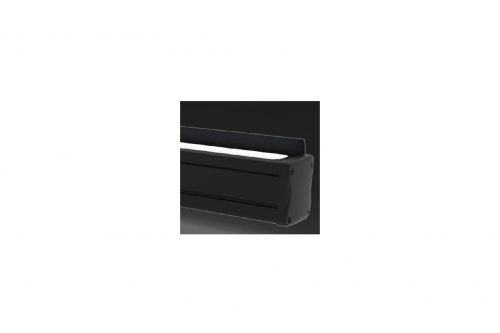

Anti-Glare Shield

Order Code: 025073

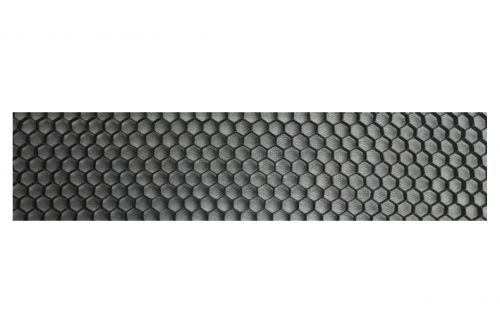

Honeycomb Louvre

Order Code: 025074
