Lumaera Diffuse

Introducing Lumaera Diffuse, a family of linear LED luminaires with an opal diffuse resin finish, suitable for indoor and outdoor use.

Categories: , , , , , Code: VEX-LUMAERA-DIF Tags:

Description

Lumaera Diffuse is a rigid linear luminaire, manufactured in the UK from ‘tier 1’ components with an anodised aluminium body and encapsulated in environmentally stable polyurethane resin. All models within the family are efficient with high-quality light output.

The opal diffuse resin finish provides fully homogenised output with a spot-free appearance. A endcap free design allows multiple luminaires to be placed end to end for a continuous lighting effect.

Lumaera diffuse can be specified in a wide range of Static White, Tunable White, RGB and Dynamic colour effects.

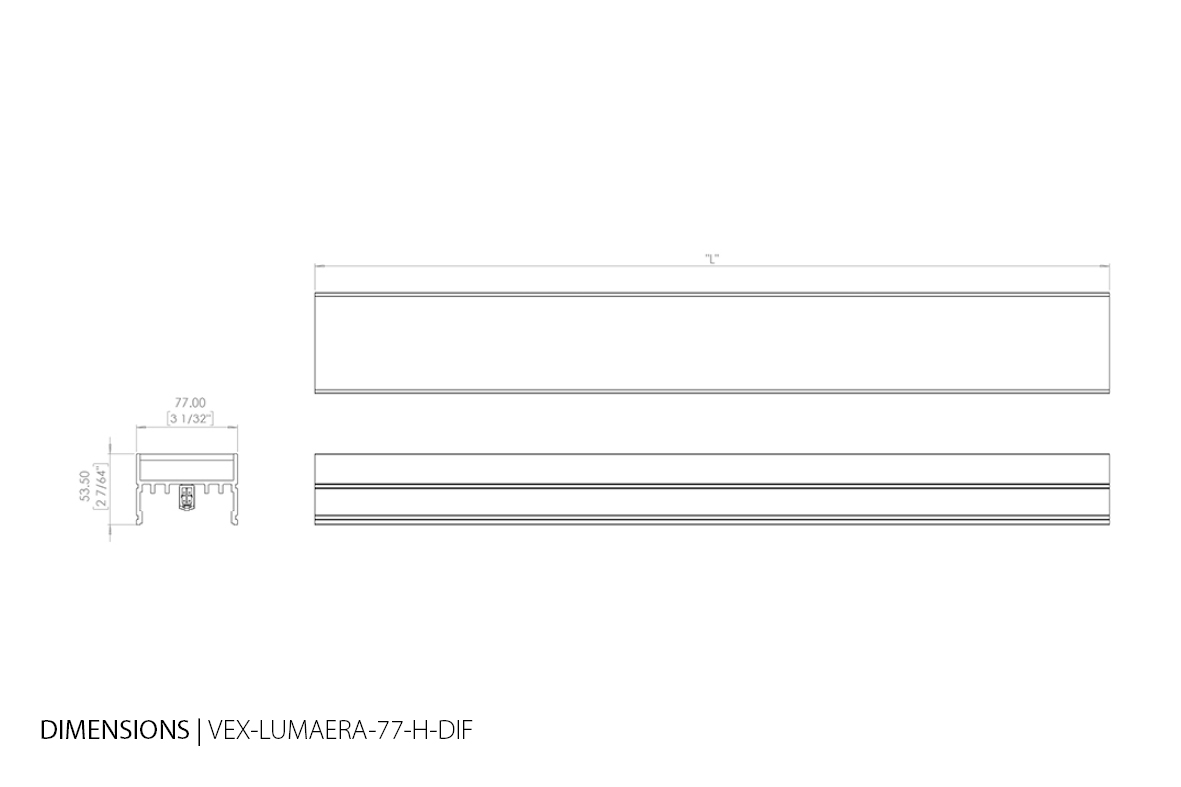

Three widths (19mm, 44mm & 77mm) and two profile options (Flat and H), mean that there is a Lumaera suitable for almost any applications.

Options

Model Options19, 44, 77
Optic OptionsOpal Diffuse Resin
CCT/LED Options2700K, 3000K, 3500K, 4000K
Tunable White (2700K-5000K)
RGB
RGB Dynamic
RGBW (Lumaera 44 & 77 Only)
CRI Options80, 90, 95
Power Options6W/m (Lumaera 19 - Static White Only)
10W/m (Lumaera 19 - Static White Only)
15W/m (Lumaera 19 - All Colour Options)
24W/m (Lumaera 44 - All Colour Options)
50W/m (Lumaera 77 - All Colour Options)
Luminaire Length0.1-1.5m (see specification guide for model specific intervals and ranges)
Max Chain Length4.8m (Lumaera 19) - 6W/m version can run 9.6m
5.0m (Lumaera 44)
3.0m (Lumaera 77)
